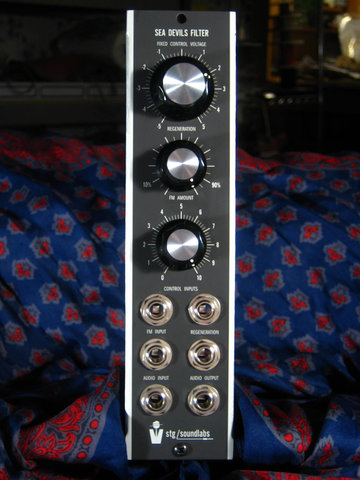

the Sea Devils Filter
A three pole diode ladder lowpass filter with voltage controlled
resonance.
There are two famous 3 pole diode ladder lowpass filters, one of them
was in a little silver box of a synthesiser with integrated sequencer
that was used to make "Acid Tracks" and the other one was was in a
big suitcase of a synthesiser with a silver faceplate and semi-
integrated sequencer that was used to make tracks on acid often. this
is the latter. I'm not going to name any names here, but I'm hoping I
don't have to mention any voltage controlled studios or electronic
music studios to establish the lineage of this filter topology.
I can't promise this thing will make Sea Devils appear on your lawn
or models of airplanes fly from one side of the stage to the other,
crashing into a papier mache sun at the end of your song, so please
don't be offended if these things fail to happen while using the
filter, presuming you'd want to own one.
Click here for a 6 minute composition made with the Sea Devils Filter. The oscillators are unmodified Synthesizers.com Q106s and every other module (envelopes, VCAs, mixing, sequencing, etc) is an available, unavailable, or yet to be available STG Soundlabs module.
An Eurorack-compliant version of this module is available from Analogue Haven.
This module features a PCB designed by Detachment 3 Engineering via Yves Usson.
Price: $250
Current estimated lead time of 2 weeks
